首頁歐美晶振 Skyworks晶振531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振

531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振

編號：14050303
頻率：156.25MHZ
尺寸：7.0*5.0mm

531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振，尺寸7050mm,頻率156.25MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性50ppm,Skyworks進口晶振，思佳訊差分晶振，7050mm差分晶振，有源差分晶振，石英差分振蕩...

531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振，尺寸7050mm,頻率156.25MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性50ppm,Skyworks進口晶振，思佳訊差分晶振，7050mm差分晶振，有源差分晶振，石英差分振蕩器，OSC差分振蕩器，貼片差分振蕩器，LVDS輸出晶振，差分晶體振蕩器，低抖動差分振蕩器，低電壓差分晶振，低功耗差分振蕩器，低損耗差分晶振，低相位差分晶振，低相噪差分晶振，高質量差分晶振，光收發器差分晶振，儀器儀表專用差分晶振，測試測量差分晶振，多媒體設備差分晶振，無線路由器差分晶振，藍牙模塊差分晶振，網絡專用差分晶振，數字視頻差分晶振，智能家電差分晶振，可視化電話差分晶振，具有高質量低功耗的特點.

石英晶體振蕩器產品很適合用于光收發器，無線路由器，測試測量，多媒體設備，藍牙模塊，網絡應用，數字視頻，智能家電，可視化電話等應用場景。531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振.

531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振 參數表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage1	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	111 99 90 81	121 108 98 88	mA
		Tristate mode	—	60	75	mA
Output Enable (OE)2		VIH	0.75 x V DD	—	—	V
		VIL	—	—	0.5	V
Operating Temperature Range	TA		–40	—	85	ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency1,2

LVPECL/LVDS/CML

156.25

MHz

CMOS

—

160

MHz

Initial Accuracy

Measured at +25 °C at time of
shipping

—

±1.5

—

ppm

Temperature Stability1,3

–7
–20
–50

—

+7
+20
+50

ppm

Aging

Frequency drift over first year

—

±3

ppm

Frequency drift over 20 year
life

—

±10

ppm

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Total Stability

Temp stability = ±7 ppm

—

±20

ppm

Temp stability = ±20 ppm

—

±31.5

ppm

Temp stability = ±50 ppm

±61.5

ppm

Powerup Time4

tOSC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

LVPECL Output Option1

mid-level

V DD – 1.42

—

V DD – 1.25

VOD

swing (diff)

1.1

—

1.9

VPP

VSE

swing (single-ended)

0.55

—

0.95

VPP

LVDS Output Option2

mid-level

1.125

1.20

1.275

VOD

swing (diff)

0.5

0.7

0.9

VPP

CML Output Option2

2.5/3.3 V option mid-level

V DD – 1.30

1.8 V option mid-level

V DD – 0.36

VOD

2.5/3.3 V option swing (diff)

1.10

1.50

1.90

VPP

1.8 V option swing (diff)

0.35

0.425

0.50

VPP

CMOS Output Option3

V OH

I OH= 32 mA

0.8 x V DD

V DD

VOL

I OL= 32 mA

0.4

Rise/Fall time (20/80%)

tR,t F

LVPECL/LVDS/CML

350

CMOS with CL= 15 pF

Symmetry (duty cycle)

SYM

LVPECL:
(diff)
LVDS:
CMOS:

V DD – 1.3 V

1.25 V (diff)
V DD/2

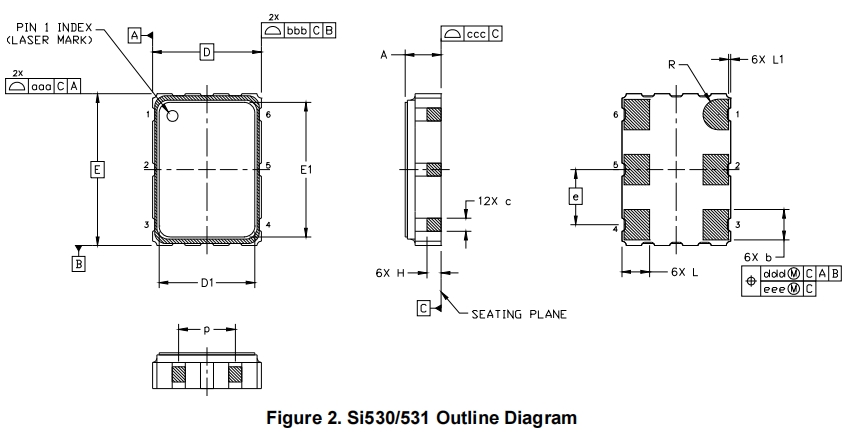

531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振 尺寸圖

531FA156M250DGR,Skyworks7050差分振蕩器,Si531無線路由器晶振

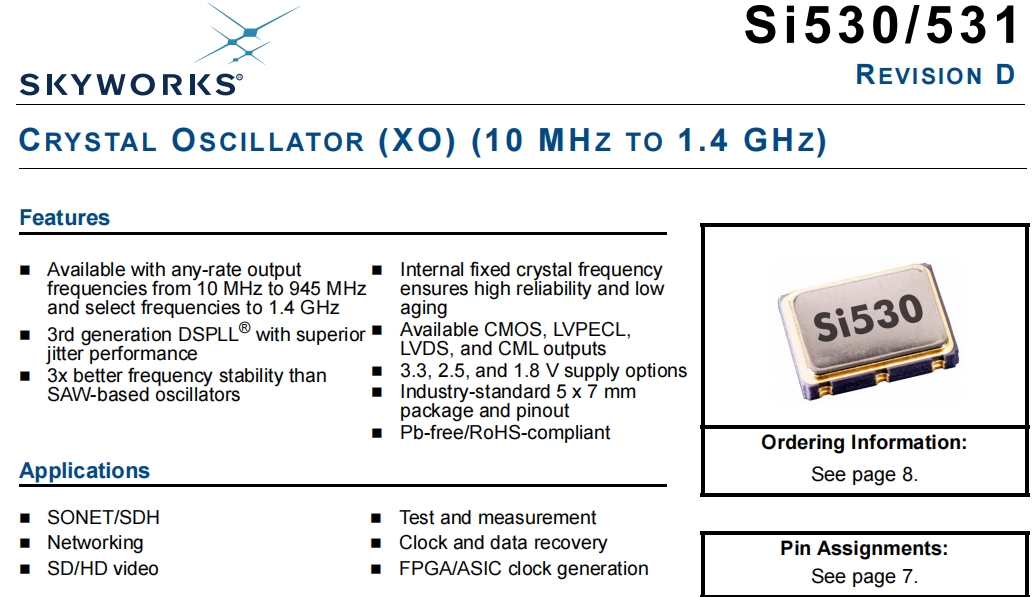

產品特性：

可用于任何速率輸出頻率從10MHz到945MHz
并選擇1.4 GHz的頻率
具有卓越性能的第三代DSPLL®抖動性能
頻率穩定性比SAW振蕩器
內部固定晶體頻率確保高可靠性和低成本變老
可用的CMOS、LVPECL、LVDS差分晶振和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7mm包裝和引腳
無鉛/符合RoHS

Mfr Part #	Mfr	Description	Series	Frequency	Output
531EA133M333DGR	Skyworks有源晶振	XTAL OSC XO 133.3330MHZ LVPECL	Si531	133.333 MHz	LVPECL
531EA148M500DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVPECL	Si531	148.5 MHz	LVPECL
531EA155M520DGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si531	155.52 MHz	LVPECL
531EA156M000DGR	Skyworks有源晶振	XTAL OSC XO 156.0000MHZ LVPECL	Si531	156 MHz	LVPECL
531EA156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si531	156.25 MHz	LVPECL
531EA175M000DGR	Skyworks有源晶振	XTAL OSC XO 175.0000MHZ LVPECL	Si531	175 MHz	LVPECL
531EA186M666DGR	Skyworks有源晶振	XTAL OSC XO 186.6660MHZ LVPECL	Si531	186.666 MHz	LVPECL
531EA187M500DGR	Skyworks有源晶振	XTAL OSC XO 187.5000MHZ LVPECL	Si531	187.5 MHz	LVPECL
531EA200M000DGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si531	200 MHz	LVPECL
531FA000211DGR	Skyworks有源晶振	XTAL OSC XO 125.00625MHZ LVDS	Si531	125.00625 MHz	LVDS
531FA000229DGR	Skyworks有源晶振	XTAL OSC XO 156.257812MHZ LVDS	Si531	156.257812 MHz	LVDS
531FA135M000DGR	Skyworks有源晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	Si531	135 MHz	LVDS
531FA148M352DGR	Skyworks有源晶振	XTAL OSC XO 148.3520MHZ LVDS SMD	Si531	148.352 MHz	LVDS
531FA148M500DGR	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si531	148.5 MHz	LVDS
531FA150M000DGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si531	150 MHz	LVDS
531FA155M520DGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si531	155.52 MHz	LVDS
531FA156M250DGR	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si531	156.25 MHz	LVDS
531FA156M256DGR	Skyworks有源晶振	XTAL OSC XO 156.2560MHZ LVDS SMD	Si531	156.256 MHz	LVDS
531FA162M000DGR	Skyworks有源晶振	XTAL OSC XO 162.0000MHZ LVDS SMD	Si531	162 MHz	LVDS
531FA166M620DGR	Skyworks有源晶振	XTAL OSC XO 166.6200MHZ LVDS SMD	Si531	166.62 MHz	LVDS
531FA166M667DGR	Skyworks有源晶振	XTAL OSC XO 166.6670MHZ LVDS SMD	Si531	166.667 MHz	LVDS
531FA167M000DGR	Skyworks有源晶振	XTAL OSC XO 167.0000MHZ LVDS SMD	Si531	167 MHz	LVDS
531FA170M000DGR	Skyworks有源晶振	XTAL OSC XO 170.0000MHZ LVDS SMD	Si531	170 MHz	LVDS
531FA175M000DGR	Skyworks有源晶振	XTAL OSC XO 175.0000MHZ LVDS SMD	Si531	175 MHz	LVDS
531FA199M950DGR	Skyworks有源晶振	XTAL OSC XO 199.9500MHZ LVDS SMD	Si531	199.95 MHz	LVDS
531FA200M050DGR	Skyworks有源晶振	XTAL OSC XO 200.0500MHZ LVDS SMD	Si531	200.05 MHz	LVDS
531FA204M800DGR	Skyworks有源晶振	XTAL OSC XO 204.8000MHZ LVDS SMD	Si531	204.8 MHz	LVDS
531FA212M500DGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si531	212.5 MHz	LVDS
531MA000361DGR	Skyworks有源晶振	XTAL OSC XO 161.32813MHZ LVPECL	Si531	161.32813 MHz	LVPECL
531MA153M600DGR	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVPECL	Si531	153.6 MHz	LVPECL
531NA155M520DGR	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si531	155.52 MHz	LVDS
531SA150M000DGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si531	150 MHz	LVDS
531EC150M000DGR	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVPECL	Si531	150 MHz	LVPECL
531FC153M600DGR	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	Si531	153.6 MHz	LVDS
531FC161M797DGR	Skyworks有源晶振	XTAL OSC XO 161.7970MHZ LVDS SMD	Si531	161.797 MHz	LVDS
531FC178M984DGR	Skyworks有源晶振	XTAL OSC XO 178.9840MHZ LVDS SMD	Si531	178.984 MHz	LVDS
531NC161M132DGR	Skyworks有源晶振	XTAL OSC XO 161.1320MHZ LVDS SMD	Si531	161.132 MHz	LVDS
531SB25M0000DGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	Si531	25 MHz	LVDS
531AA000278DG	Skyworks有源晶振	XTAL OSCILLATOR	Si531	156.253906 MHz	LVPECL
531BA000185DG	Skyworks有源晶振	XTAL OSCILLATOR	Si531	161.132812 MHz	LVDS
531BA004659DG	Skyworks有源晶振	XTAL OSCILLATOR	Si531	161.13282 MHz	LVDS
531FA205M000DG	Skyworks有源晶振	XTAL OSCILLATOR	Si531	205 MHz	LVDS
531FA148M350DG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si531	148.35 MHz	LVDS
531AA150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVPECL	Si531	150 MHz	LVPECL
531AA151M563DG	Skyworks有源晶振	XTAL OSC XO 151.5630MHZ LVPECL	Si531	151.563 MHz	LVPECL
531AA155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si531	155.52 MHz	LVPECL
531AA156M251DG	Skyworks有源晶振	XTAL OSC XO 156.2510MHZ LVPECL	Si531	156.251 MHz	LVPECL
531AA156M274DG	Skyworks有源晶振	XTAL OSC XO 156.2740MHZ LVPECL	Si531	156.274 MHz	LVPECL
531AA159M375DG	Skyworks有源晶振	XTAL OSC XO 159.3750MHZ LVPECL	Si531	159.375 MHz	LVPECL
531AA160M938DG	Skyworks有源晶振	XTAL OSC XO 160.9380MHZ LVPECL	Si531	160.938 MHz	LVPECL
531AA166M667DG	Skyworks有源晶振	XTAL OSC XO 166.6670MHZ LVPECL	Si531	166.667 MHz	LVPECL
531AA167M332DG	Skyworks有源晶振	XTAL OSC XO 167.3320MHZ LVPECL	Si531	167.332 MHz	LVPECL
531AA172M500DG	Skyworks有源晶振	XTAL OSC XO 172.5000MHZ LVPECL	Si531	172.5 MHz	LVPECL
531AA175M000DG	Skyworks有源晶振	XTAL OSC XO 175.0000MHZ LVPECL	Si531	175 MHz	LVPECL
531AA187M500DG	Skyworks有源晶振	XTAL OSC XO 187.5000MHZ LVPECL	Si531	187.5 MHz	LVPECL
531AA194M000DG	Skyworks有源晶振	XTAL OSC XO 194.0000MHZ LVPECL	Si531	194 MHz	LVPECL
531AA200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si531	200 MHz	LVPECL
531AA206M000DG	Skyworks有源晶振	XTAL OSC XO 206.0000MHZ LVPECL	Si531	206 MHz	LVPECL
531AA212M500DG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVPECL	Si531	212.5 MHz	LVPECL
531BA000174DG	Skyworks有源晶振	XTAL OSC XO 174.0000KHZ LVDS SMD	Si531	174 kHz	LVDS
531BA135M000DG	Skyworks有源晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	Si531	135 MHz	LVDS
531BA148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si531	148.5 MHz	LVDS
531BA150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si531	150 MHz	LVDS
531BA155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si531	155.52 MHz	LVDS
531BA156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si531	156.25 MHz	LVDS
531BA159M375DG	Skyworks有源晶振	XTAL OSC XO 159.3750MHZ LVDS SMD	Si531	159.375 MHz	LVDS
531BA160M000DG	Skyworks有源晶振	XTAL OSC XO 160.0000MHZ LVDS SMD	Si531	160 MHz	LVDS
531BA160M250DG	Skyworks有源晶振	XTAL OSC XO 160.2500MHZ LVDS SMD	Si531	160.25 MHz	LVDS
531BA161M133DG	Skyworks有源晶振	XTAL OSC XO 161.1330MHZ LVDS SMD	Si531	161.133 MHz	LVDS
531BA166M000DG	Skyworks有源晶振	XTAL OSC XO 166.0000MHZ LVDS SMD	Si531	166 MHz	LVDS
531BA200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si531	200 MHz	LVDS
531BA204M800DG	Skyworks有源晶振	XTAL OSC XO 204.8000MHZ LVDS SMD	Si531	204.8 MHz	LVDS
531BA212M500DG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si531	212.5 MHz	LVDS
531EA133M333DG	Skyworks有源晶振	XTAL OSC XO 133.3330MHZ LVPECL	Si531	133.333 MHz	LVPECL
531EA148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVPECL	Si531	148.5 MHz	LVPECL
531EA155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVPECL	Si531	155.52 MHz	LVPECL
531EA156M000DG	Skyworks有源晶振	XTAL OSC XO 156.0000MHZ LVPECL	Si531	156 MHz	LVPECL
531EA156M250DG	Skyworks晶振	XTAL OSC XO 156.2500MHZ LVPECL	Si531	156.25 MHz	LVPECL
531EA175M000DG	Skyworks有源晶振	XTAL OSC XO 175.0000MHZ LVPECL	Si531	175 MHz	LVPECL
531EA186M666DG	Skyworks有源晶振	XTAL OSC XO 186.6660MHZ LVPECL	Si531	186.666 MHz	LVPECL
531EA187M500DG	Skyworks有源晶振	XTAL OSC XO 187.5000MHZ LVPECL	Si531	187.5 MHz	LVPECL
531FA000211DG	Skyworks有源晶振	XTAL OSC XO 125.00625MHZ LVDS	Si531	125.00625 MHz	LVDS
531FA000229DG	Skyworks有源晶振	XTAL OSC XO 156.257812MHZ LVDS	Si531	156.257812 MHz	LVDS
531FA135M000DG	Skyworks有源晶振	XTAL OSC XO 135.0000MHZ LVDS SMD	Si531	135 MHz	LVDS
531FA148M352DG	Skyworks有源晶振	XTAL OSC XO 148.3520MHZ LVDS SMD	Si531	148.352 MHz	LVDS
531FA148M500DG	Skyworks有源晶振	XTAL OSC XO 148.5000MHZ LVDS SMD	Si531	148.5 MHz	LVDS
531FA150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si531	150 MHz	LVDS
531FA155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si531	155.52 MHz	LVDS
531FA156M250DG	Skyworks有源晶振	XTAL OSC XO 156.2500MHZ LVDS SMD	Si531	156.25 MHz	LVDS
531FA156M256DG	Skyworks有源晶振	XTAL OSC XO 156.2560MHZ LVDS SMD	Si531	156.256 MHz	LVDS
531FA160M000DG	Skyworks有源晶振	XTAL OSC XO 160.0000MHZ LVDS SMD	Si531	160 MHz	LVDS
531FA162M000DG	Skyworks有源晶振	XTAL OSC XO 162.0000MHZ LVDS SMD	Si531	162 MHz	LVDS
531FA166M620DG	Skyworks有源晶振	XTAL OSC XO 166.6200MHZ LVDS SMD	Si531	166.62 MHz	LVDS
531FA166M667DG	Skyworks有源晶振	XTAL OSC XO 166.6670MHZ LVDS SMD	Si531	166.667 MHz	LVDS
531FA167M000DG	Skyworks有源晶振	XTAL OSC XO 167.0000MHZ LVDS SMD	Si531	167 MHz	LVDS
531FA170M000DG	Skyworks有源晶振	XTAL OSC XO 170.0000MHZ LVDS SMD	Si531	170 MHz	LVDS
531FA175M000DG	Skyworks有源晶振	XTAL OSC XO 175.0000MHZ LVDS SMD	Si531	175 MHz	LVDS
531FA199M950DG	Skyworks有源晶振	XTAL OSC XO 199.9500MHZ LVDS SMD	Si531	199.95 MHz	LVDS
531FA200M000DG	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si531	200 MHz	LVDS
531FA200M050DG	Skyworks有源晶振	XTAL OSC XO 200.0500MHZ LVDS SMD	Si531	200.05 MHz	LVDS
531FA204M800DG	Skyworks有源晶振	XTAL OSC XO 204.8000MHZ LVDS SMD	Si531	204.8 MHz	LVDS
531FA212M500DG	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si531	212.5 MHz	LVDS
531MA000361DG	Skyworks有源晶振	XTAL OSC XO 161.32813MHZ LVPECL	Si531	161.32813 MHz	LVPECL
531MA153M600DG	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVPECL	Si531	153.6 MHz	LVPECL
531NA155M520DG	Skyworks有源晶振	XTAL OSC XO 155.5200MHZ LVDS SMD	Si531	155.52 MHz	LVDS
531SA150M000DG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si531	150 MHz	LVDS
531AC1000M00DGR	Skyworks有源晶振	XTAL OSC XO 1.0000GHZ LVPECL SMD	Si531	1 GHz	LVPECL
531AC1024M00DGR	Skyworks有源晶振	XTAL OSC XO 1024.0000MHZ LVPECL	Si531	1024 MHz	LVPECL
531AC1218M50DGR	Skyworks有源晶振	XTAL OSC XO 1.2185GHZ LVPECL SMD	Si531	1.2185 GHz	LVPECL
531AC1220M00DGR	Skyworks有源晶振	XTAL OSC XO 1.2200GHZ LVPECL SMD	Si531	1.22 GHz	LVPECL
531AC1273M00DGR	Skyworks有源晶振	XTAL OSC XO 1.2730GHZ LVPECL SMD	Si531	1.273 GHz	LVPECL
531AC1280M00DGR	Skyworks有源晶振	XTAL OSC XO 1280.0000MHZ LVPECL	Si531	1280 MHz	LVPECL
531BC1000M00DGR	Skyworks有源晶振	XTAL OSC XO 1.0000GHZ LVDS SMD	Si531	1 GHz	LVDS
531BC1024M00DGR	Skyworks有源晶振	XTAL OSC XO 1024.0000MHZ LVDS	Si531	1024 MHz	LVDS
531BC1104M00DGR	Skyworks有源晶振	XTAL OSC XO 1.1040GHZ LVDS SMD	Si531	1.104 GHz	LVDS
531BC1296M00DGR	Skyworks有源晶振	XTAL OSC XO 1.2960GHZ LVDS SMD	Si531	1.296 GHz	LVDS
531NC866M000DGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si531	866 MHz	LVDS
